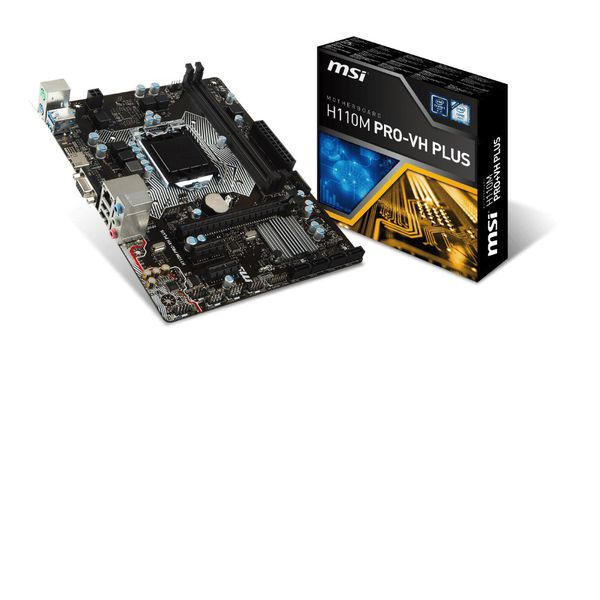

Product Overview

– Supports 6th Gen Intel Core i3/i5/i7 processors, and Intel Pentium and Celeron processors for Socket LGA1151

SKU: H110MPRO-VHPLUS Categories: ,
Brand

– 2 x DDR4 memory slots, support up to 32GBSupports Non-ECC, un-buffered memory
– 1 x PCIe 3.0 x16 slot, 2 x PCIe 2.0 x1 slots.
– 1 x HDMI ports, 1 x VGA port.
– 4 x SATA 6Gb/s ports.
– 4 x USB 3.1 Gen1 (SuperSpeed USB) ports , 6 x USB 2.0 (High-speed USB) ports.

– 7.1-Channel High Definition Audio. 1 x Realtek RTL8111H Gigabit LAN controller.

Back Panel I/O Ports:
– 1 x PS/2 mouse port
– 1 x PS/2 keyboard port
– 1 x PS/2 keyboard port
– 2 x USB 3.1 Gen1 ports
– 1 x HDMI port
– 1 x VGA port
– 1 x LAN (RJ45) port
– 3 x audio jacks.

Internal I/O Connectors:
– 1 x 24-pin ATX main power connector
– 1 x 4-pin ATX 12V power connector
– 4 x SATA 6Gb/s connectors
– 2 x USB 2.0 connectors
– 1 x USB 3.1 Gen1 connector
– 1 x 4-pin CPU fan connector
– 1 x 4-pin system fan connectors
– x Front panel audio connector
– 2 x Front panel connectors
– 1 x TPM module connector
– 1 x Serial Port connector
– 1 x Chassis Intrusion connector
– 1 x Clear CMOS jumper.
