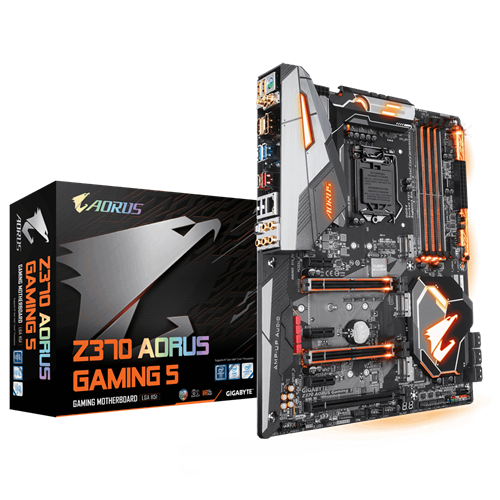

Gigabyte Z370 AORUS Gaming 5

Gigabyte
Availability:

In stock


Compare

Gigabyte Z370 AORUS Gaming 5 (rev. 1.0) LGA1151 Motherboard – Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/ Intel Core i3 processors in the LGA1151 package, Intel Z370 Express Chipset, 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory, 6 x SATA 6Gb/s connectors, 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G, M2A_32G), 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P_32G), Support for RAID 0, RAID 1, RAID 5, and RAID 10, 1 x DisplayPort, 1 x HDMI port, 1 x USB Type-C port, with USB 3.1 Gen 2 support, 1 x USB 3.1 Gen 2 Type-A port (red), 4 x USB 3.1 Gen 1 ports, 2 x USB 2.0/1.1 ports, Realtek ALC1220 codec, Intel GbE LAN chip (10/100/1000 Mbit) Gigabit LAN, 1 x PCI Express x16 slot, running at x16 (PCIEX16), 1 x PCI Express x16 slot, running at x8 (PCIEX8), 1 x PCI Express x16 slot, running at x4 (PCIEX4), 3 x PCI Express x1 slots – ATX Form Factor, Retail Box, 2 year warranty.

$385.62

In stock

Product Overview:
The AORUS Z370 enthusiast motherboards are faster and more powerful than any other motherboards the world has seen. With aggressively redesigned armor and thermal heatsinks, its performance capabilities and durability are second to none. Performance is no stranger to AORUS, with exotic cooling and an ability to be tuned to peak performance, AORUS motherboards will exceed expectations.

With AORUS Z370 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z370 Series AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

Highlights:
• Supports 8th Gen Intel® Core™ Processors
• Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
• Intel® Optane™ Memory Ready
• ASMedia 3142 USB 3.1 Gen 2 with USB Type-C™ and Type-A
• Front USB 3.1 Gen 1 Type-C™ Header
• Multi-Way Graphics Support with Dual Armor and Ultra Durable™ Design
• ALC1220 120dB SNR HD Audio with Smart Headphone AMP and WIMA audio capacitors
• Sound BlasterX 720°, the top-of-the-line audio engine solution for 4K gaming and entertainment
• Intel GbE LAN Gaming Network with cFosSpeed Internet Accelerator Software
• Intel 1×1 802.11ac Wireless – AC 3165
• RGB FUSION with Multi-Zone Digital LED Light Show design, support digital LED & RGB LED strips
• Swappable Overlay for Accent LED
• Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
• Triple Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface
• USB DAC-UP 2 with Adjustable Voltage
• Anti-Sulfur Resistors Design
• Ultra Durable™ 25KV ESD and 15KV Surge LAN Protection

Features
RGB Fusion with Digital LEDs
With AORUS Z370 Motherboards, RGB Fusion is even better with Digital LEDs.* RGB Fusion offers users the option to control onboard RGB and external RGBW/ Digital LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion on Z370 Series AORUS Motherboards are now upgraded with Digital LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion application, the user has complete control over the LEDs which surround the motherboard.

Surround Lighting
Multi-light zones are equipped with high brightness RGB LEDs, namely the CPU, Memory, Armor, Audio, PCI-Express and Swappable Overlay for Accent LED. When it’s all set and done, your system will shine like never before.

Swappable Overlay for Accent LED
AORUS brings even more color and life to your system with an Accent LED Overlay. This overlay complements the RGB Fusion technology in AORUS Motherboards adding more flare and style to your gaming machine. With the swappable overlay users can utilize different patterns and designs to make their system their own. Design your very own Accent LED Overlay with a 3D printer. Click here to download dimensions and 3D files for the Accent LED Overlay.

ALC1220 120dB SNR HD Audio with Smart Headphone Amp
The ALC1220 is a high-performance multi-channel High Definition Audio Codec with up to 120dB SNR for crystal clear audio and features such as Smart Headphone Amp, 114dB SNR recording for precise voice chats and hardware decoding of DSD128, ensuring users get the best possible audio quality from their PC.

Smart Headphone AMP
Automatically detects impedance of your head-worn audio device, whether earbuds or high-end headphones to provide optimal audio dynamics—preventing issues such as low volume and distortion.

USB DAC-UP 2
AORUS improves upon USB DAC-UP technologies with USB DAC-UP 2.
USB DAC-UP 2 continues to provide clean, isolated and low-noise power while adding the ability to compensate for voltage drop.
Virtual reality pioneers and gamers alike can rest assured that their expensive accessories and peripherals will not encounter connectivity or power deficiency issues with the AORUS USB DAC-UP 2. With Gaming Gear drawing large amounts of power and having firm specification requirements USB DAC-UP 2 is up for the challenge.
Smart Fan 5
With Smart Fan 5 users can ensure that their gaming PC can maintain its performance while staying cool. Smart Fan 5 allows users to interchange their fan headers to reflect different thermal sensors at different locations on the motherboard. Not only that, with Smart Fan 5 more hybrid fan headers that support both PWM and Voltage mode fans have been introduced to make the motherboard more liquid cooling friendly.

Hybrid Fan Pin Headers & Temperature Sensors
Assume complete control over your liquid cooling setup! Smart Fan 5 receives up-to-the-second information on flow-rate and water-temperature through the Hybrid Fan Pin Headers or external thermistor sensors—giving you absolute mastery over your PC.
• All Hybrid Fan Headers can automatically detect the type of cooling device whether it be fan or pump with different PWM or Voltage mode.
• Includes support for one High-Current Pump up to 3 Amps with built-in overcurrent protection—a must for high-end high current fans.

Turbo B-Clock
Built-in Advanced Performance Tuning IC
Turbo B-Clock Tuning IC in the AORUS Z370 series motherboards enables overclockers to have the ability to change their BCLK frequency to a desired value of their choice. With the new linear range adjustment option of the Tuning IC, ranges from 90MHz to 500MHz are now possible, so that overclockers are not limited to the 5% ranges of traditional straps.
Specifications

• Product Code: GA-Z370-AORUS-GAMING5
• Description: Gigabyte Z370 AORUS Gaming 5 (rev. 1.0) LGA1151 Motherboard

CPU
• Support for 8th Generation Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors in the LGA1151 package
• L3 cache varies with CPU

Chipset
• Intel® Z370 Express Chipset

Memory
• 4 x DDR4 DIMM sockets supporting up to 64 GB of system memory
• Dual channel memory architecture
• Support for DDR4 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200(O.C.) / 3000(O.C.) / 2800(O.C.) / 2666 / 2400 / 2133 MHz memory modules
• Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for Extreme Memory Profile (XMP) memory modules.

Onboard Graphics
• 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60 Hz
• Support for DisplayPort 1.2 version, HDCP 2.2, and HDR.
• 1 x HDMI port, supporting a maximum resolution of 4096×2160@30 Hz
• Support for HDMI 1.4 version and HDCP 2.2.

Audio
• Realtek® ALC1220 codec
• Support for Sound BlasterX 720°
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN
• Intel® GbE LAN chip (10/100/1000 Mbit)

Wireless Communication module
• Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band
• BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR
• Support for 11ac wireless standard and up to 433 Mbps data rate
Expansion Slots

• 1 x PCI Express x16 slot, running at x16 (PCIEX16)
• For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• 1 x PCI Express x16 slot, running at x8 (PCIEX8)
• The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
• 1 x PCI Express x16 slot, running at x4 (PCIEX4)
• The PCIEX4 slot shares bandwidth with the M2P_32G connector. The PCIEX4 slot operates at up to x2 mode when a PCIe SSD is installed in the M2P_32G connector.
• 3 x PCI Express x1 slots
• The PCIEX1_3 slot shares bandwidth with the SATA3 1 connector. When the PCIEX1_3 slot is populated, the SATA 3 1 connector becomes unavailable.
• (All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface
• 2 x M.2 connectors (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2M_32G, M2A_32G)
• 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe x4/x2 SSD support) (M2P_32G)
• 6 x SATA 6Gb/s connectors
• Support for RAID 0, RAID 1, RAID 5, and RAID 10
• Refer to “1-8 Internal Connectors,” for the installation notices for the M.2 and SATA connectors.

Multi-Graphics Technology
• Support for NVIDIA® Quad-GPU SLI™ and 2-Way NVIDIA® SLI™ technologies
• Support for AMD Quad-GPU CrossFire™ and 3-Way/2-Way AMD CrossFire™ technologies

USB
• Chipset+ASMedia® USB 3.1 Gen 2 Controller:
• 1 x USB Type-C™ port on the back panel, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red) on the back panel
• Chipset:
• 1 x USB Type-C™ port with USB 3.1 Gen 1 support, available through the internal USB header
• 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
• 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 4 x system fan headers
• 1 x 3 Amp fan/water cooling pump header
• 1 x system fan/water cooling pump header
• 2 x digital LED strip headers
• 2 x digital LED strip power select jumpers
• 2 x RGB (RGBW) LED strip headers
• 3 x M.2 Socket 3 connectors
• 6 x SATA 6Gb/s connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x S/PDIF Out header
• 1 x USB Type-C™ port, with USB 3.1 Gen 1 support
• 1 x USB 3.1 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module (TPM) header (2×6 pin, for the GC-TPM2.0_S module only)
• 1 x Thunderbolt™ add-in card connector
• 1 x Clear CMOS jumper
• 2 x temperature sensor headers

Back Panel Connectors
• 1 x PS/2 keyboard/mouse port
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C™ port, with USB 3.1 Gen 2 support
• 1 x USB 3.1 Gen 2 Type-A port (red)
• 4 x USB 3.1 Gen 1 ports
• 2 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)

I/O Controller
• iTE® I/O Controller Chip

H/W Monitoring
• Voltage detection
• Temperature detection
• Fan speed detection
• Water cooling flow rate detection
• Overheating warning
• Fan fail warning
• Fan speed control

BIOS
• 2 x 128 Mbit flash
• Use of licensed AMI UEFI BIOS
• Support for DualBIOS™
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

SKU: GA-Z370-AORUS-GAMING5 Category:
