Product Overview

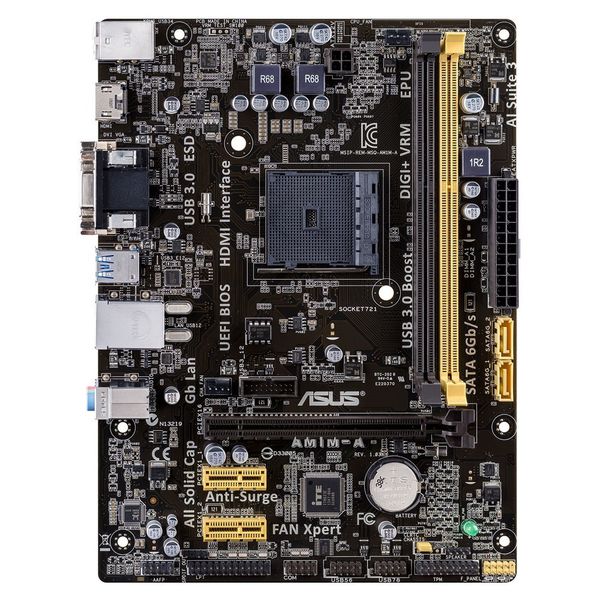

AMD AM1 Socket-based power-efficient SoC motherboard for entry-level desktops, featuring exclusive high-endurance 5X Protection

Features:
– ASUS 5X PROTECTION – All-round protection provides the best quality, reliability and durability
– New UEFI BIOS – Friendlier, easier and more intuitive with helpful info added
– USB 3.0 Boost (UASP Support) – 170 Percent faster transfer speeds than traditional USB 3.0
– Ai Suite 3 – One-stop access to innovative ASUS features

Brand

CPU:
– AMD Socket AM1 Athlon /Sempron Processors
– Supports CPU up to 4 cores

Chipset:
– Build in AMD Sempron and Athlon-Series APUs

Memory:
– 2 x DIMM, Max. 32GB, DDR3 1600/1333 MHz Non-ECC, Un-buffered Memory
– Single Channel Memory Architecture
– Support AMD Memory Profile (AMP) memory

Graphic:
Integrated AMD Radeon™ R Series Graphics in the APU
Multi-VGA output support : HDMI/DVI/RGB ports
– Supports HDMI with max. resolution 4096 x 2160 @ 24 Hz / 1920 x 1080 @ 60 Hz*1
– Supports DVI with max. resolution 1920 x 1200 @ 60 Hz
– Supports RGB with max. resolution 1920 x 1200 @ 60 Hz
Maximum shared memory of 2048 MB

Expansion Slots
– 1 x PCIe 2.0 x16 (x4 mode)
– 2 x PCIe 2.0 x1

Storage:
– AMD Sempron and Athlon-Series APUs : 2 x SATA 6GB per second port(s), yellow

LAN:
– Realtek 8111GR, 1 x Gigabit LAN Controller(s)

Audio:
– Realtek ALC887-VD 8-Channel High Definition Audio CODEC

Back Input and Output Ports:
– 1 x PS/2 keyboard/mouse combo port(s)
– 1 x DVI
– 1 x D-Sub
– 1 x HDMI
– 1 x LAN (RJ45) port(s)
– 2 x USB 3.0 (blue)
– 4 x USB 2.0
– 3 x Audio jack(s)

Internal Input and Output Ports:
– 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
– 1 x TPM header
– 1 x COM port(s) connector(s)
– 2 x SATA 6GB per second connector(s)
– 1 x CPU Fan connector(s)
– 1 x Chassis Fan connector(s)
– 1 x S/PDIF out header(s)
– 1 x 24-pin EATX Power connector(s)
– 1 x 4-pin ATX 12V Power connector(s)
– 1 x parallel port connector(s)
– 1 x Front panel audio connector(s) (AAFP)
– 1 x Internal speaker connector(s)
– 1 x System panel(s)

Form Factor:
– mATX Form Factor
– 8.9 inch x 6.7 inch ( 22.6 cm x 17 cm )
